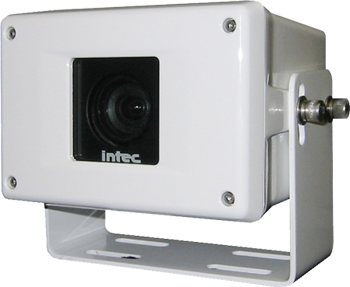

VSC510 - Color Zoom Camera
| Product Benefits |
| High Resolution Color Images when used with out VSM or CVD color monitors for excellent picture quality. |
| Motorized 23X Optical Zoom Lens provides extremely detailed viewing, impossible with standard cameras. |
| Removable IR Cut-Filter automatically switches from color to black and white for optimal viewing in very low-light conditions. |
| Compatible with INTEC VSX351 Series Controllers. |
| Optional RF Transmission enables the ultimate in viewing flexibility. |
| Specifications |
| Lens 3.6mm - 82.8mm 23x Optical Zoom F1.6 |
| Field of View Horizontal: 54° (W) / 2.5° (T) |
| Focus Auto (VAF), Manual (Far/Near) |
| Focus Distance Infinity - 1m (T) 0.01 (W) (Manual Mode) |
| Construction Cast and Machined 356 T51 Al Alloy |
| Finish Polyurethane Paint - Cardinal White |
| Environment All Weather Gasketed Housing, Sealed Connector |
| Temperatures (C) Operation -40 to +80 Deg Storage -65 to +150 Deg |
| Weight 4.1 lbs. |
| Signal NTSC Video UPT |
| Sensor 1/4" WDR/HS Progressive Scan CCD |
| Resolution 470 Horizontal TVL |
| S/N Ratio 50dB |
| Sensitivity IP On - 3 lx Color IR Off - .02 lx BW (Minimum) |
| Sync System Internal |
